Wise Lite arms cam section tutorial

Post by **Pirate** » Tue Mar 20, 2007 9:09 am

The tutorial for the Wise Lite cam sections is finished.. There is a link to a free .dfx reader, download and install it then save the templates and you will be able to print them to scale.

http://projectguns.com/camsections1.html

Post by **Bil** » Tue Mar 20, 2007 5:27 pm

These look like what we have been waiting for! now for the receivers.No wonder we haven't heard from you,Pirate,you have BUSY!!! All good stuff,too.Thanks. ---bil

KMURPHY · Post by **KMURPHY** » Wed Mar 21, 2007 3:38 pm

really cool

Post by **Bil** » Wed Mar 21, 2007 3:44 pm

It looks like some machine work is needed,very little.The shape itself looks good. ---bil

Post by **Pirate** » Sun Mar 25, 2007 8:37 am

there is machine work required, I am working on a set of templates you can download for some of it. I will be getting a shroud from Wise lite and some information on mating the parts. I will post it all in the tutorial.
I will also be doing one for the bbl shroud bushing.

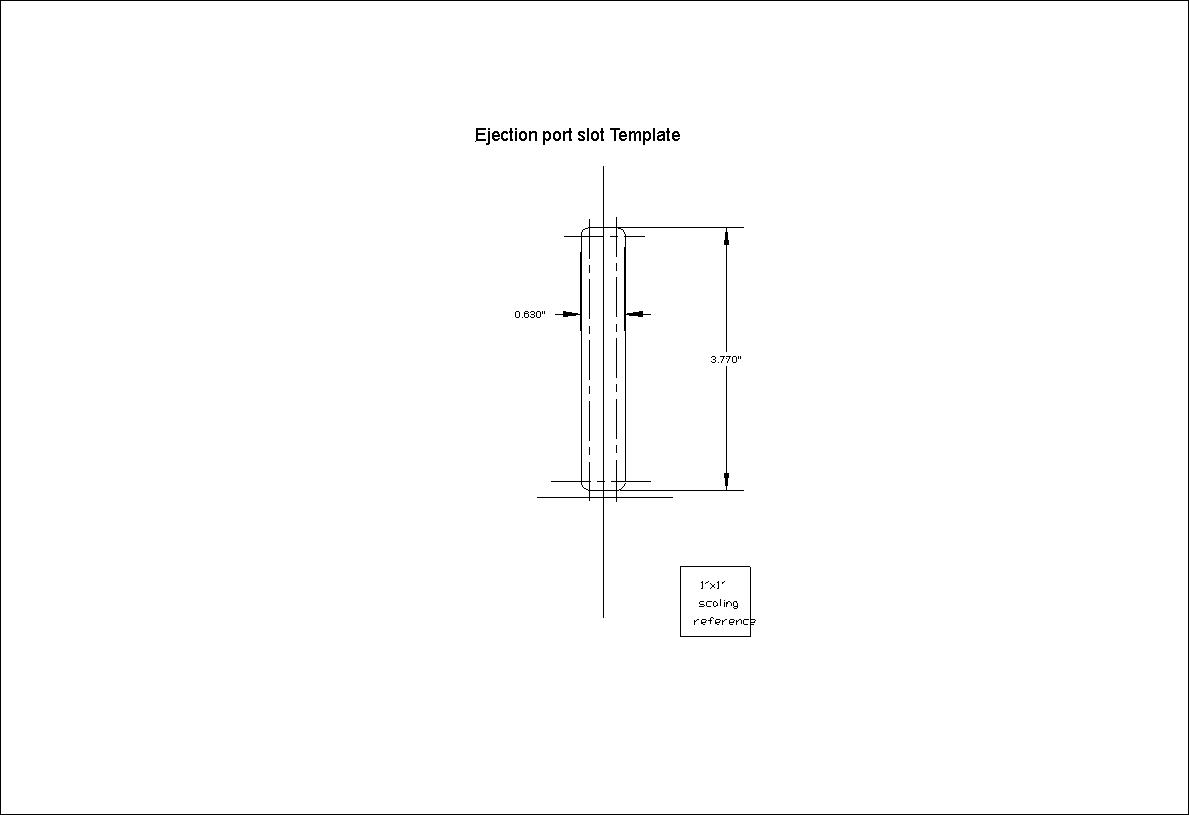

I have attached a copy of the ejection port template, can a few of you download and print it and see if it comes out to scale?
thanks

Little Rhody · Post by **Little Rhody** » Mon Mar 26, 2007 11:06 am

I have not been able to print it to scale. I tried doing this two differant ways. But I think the info is clear and could be easily be mocked up on the part to scale with the specs you have provided.

Thanks,
LR

Post by **Bil** » Mon Mar 26, 2007 11:16 am

I agree-I couldn,t get it to come out,but I am not too proficient with the computer.So I just used the measurements,added a radius,and made a paper template.Tried it on several receivers-worked fine!. ---bil

Post by **Pirate** » Mon Mar 26, 2007 12:20 pm

thats what I was afraid of. I have some other things to try, I will post a few different files later. If you guys would try iy out I would appriciate it.

Post by **MGMike** » Mon Mar 26, 2007 3:21 pm

Hi Pirate:

To print to size on everybody's printers, it needs to be a .pdf file. If your drafting program will "output" .pdf's then you can do it. If not....I can have a try with my program. Send me a .dxf or .dwg file and I'll see what I can do.

MikeD

Post by **Pirate** » Mon Mar 26, 2007 4:22 pm

I found a site with a free .dfx / .dwg reader, it will print to scale. here is the link, download and install the program

http://www.edrawingsviewer.com/

I can't attach a .dfx file here , I will post it on my site tonight.

Post by **MGMike** » Mon Mar 26, 2007 5:21 pm

That looks like an interesting program. I'll have to check it out.

Thanks

MikeD

Post by **TOM R** » Mon Mar 26, 2007 5:44 pm

stan awsome job as always

Post by **Pirate** » Mon Mar 26, 2007 7:31 pm

I just updated the cam section page on my site, I can't attach the dfx file format here. There is a ling to the reader and a link to the drawing, click on the link, save the fie, download the virewere and it should print to scale. I will have the rest of the templates posted in a couple of days if it works.

http://www.projectguns.com/camsection4.html

Post by **Pirate** » Tue Mar 27, 2007 8:32 am

has anyone tried the program and template?

Village · Post by **Village** » Tue Mar 27, 2007 10:00 am

Pirate, the program prints the diagram to scale perfectly - thanks!

mr. wipple · Post by **mr. wipple** » Tue Mar 27, 2007 10:14 am

Pirate has made this so easy to follow I might just build another MG 42/M 53

.

Post by **Pirate** » Tue Mar 27, 2007 11:16 am

Great, thanks . I will do the rest of the templates in the next couple of days.

Post by **MGMike** » Tue Mar 27, 2007 11:44 am

The program and template work fine....thanks again.

MikeD

Post by **Pirate** » Fri Apr 06, 2007 7:24 pm

I got in a shroud from Wise Lite to finish the cam section tutorial and do a front bushing repair tutorial. I will finish it when I get back from knob creek

Post by **Pirate** » Wed May 02, 2007 6:52 pm

I am finishing the tutorial, the template for the feed cutout is now available and I will be welding the cam section to a bbl shroud.
